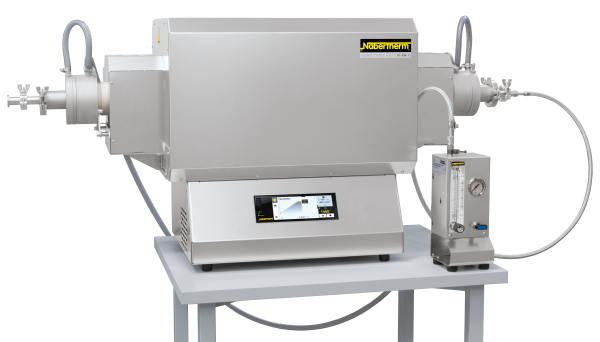

Compact Tube Furnaces up to 1300 °C

Standard Equipment

• Tmax 1200 °C or 1300 °C
• Single-zoned design
• Dual shell ventilated housing made of textured stainless steel sheets for low surface temperature and high stability Exclusive use of insulation materials without categorization according to EC Regulation No 1272/2008 (CLP). This explicitly means that alumino silicate wool, also known as “refractory ceramic fiber” (RCF), which is classified and possibly carcinogenic, is not used.
• Outer tube diameter of 50 mm to 170 mm, heated length from 250 mm to 1000 mm
• Ceramic working tube C 530 including two fiber plugs for operation under air
• Thermocouple type N (1200 °C) or type S (1300 °C)
• Solid state relays provide for lownoise operation
• Heating elements on support tubes provide for free radiation
• Defined application within the constraints of the operating instructions
• NTLog Basic for Nabertherm controller: recording of process data with USB-flash drive
• Controller with touch operation B510 (5 programs with each 4 segments)
