Vers-A-Tech™ - Versatile Machine for IV Bags and Nested Containers

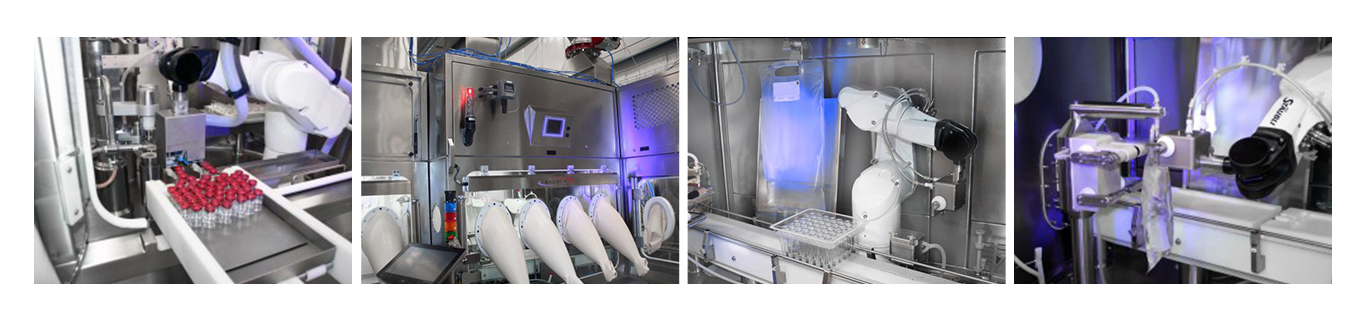

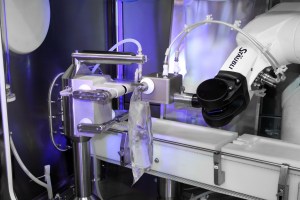

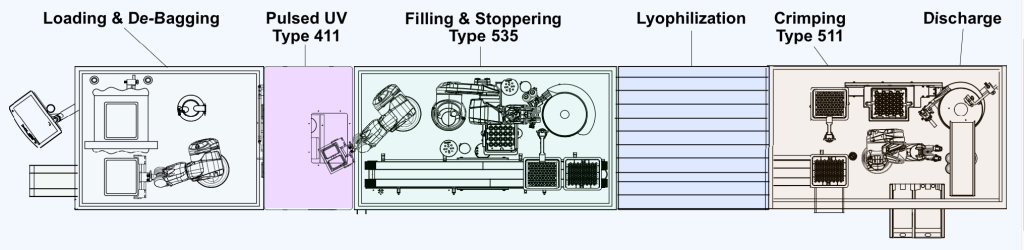

Vers-A-Tech™ Platform is a semi-automatic or fully automatic modular versatile machine that processes Bags and Nested Containers on one machine. Containers are loaded and debagged under laminar flow onto a conveyor belt. A cleanroom robot transfers the nest and/ or Bag into the Pulsed UV Pass-Through Transfer Chamber. After the surface is decontaminated, a robot places the containers onto the main transport conveyor. The robot fills and closes the containers automatically under vacuum to avoid contamination. Equipped with a Peristaltic Pump, which can achieve a filling tolerance of up to +/- 0.5%. The machine guarding and RABS provides user safety while ensuring ample access to the workstations. Designed to support a top-mounted laminar flow unit and/or Isolator.



Request a Quote

Key Features:

  • Process Nested Containers & IV Bags
  • Modular Platform Technology
  • Automatic Robotic Processing
  • Isolator and/ or Laminar Flow
  • Lyophilization Transfer Chamber
  • RABS (Restricted Access Barrier System)
  • PUV Transfer Chamber – up to 6 log reduction



Industrial Use:

  • Pharmaceutical
  • Biotech
  • Cell & Gene Therapy



Output

  • Vials: Up to 30/min
  • Syringes: Up to 15/min
  • Bags: Up to 5/min
