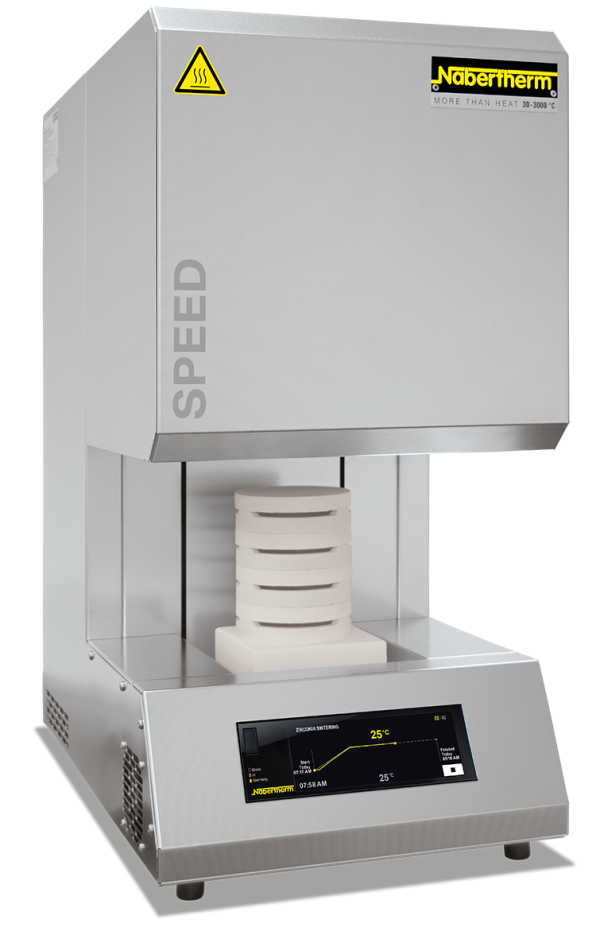

The electrically driving lifting table significantly simplifies the charging of the high-temperature furnaces LHT ../.. LB Speed. The heating all around the cylindrical furnace chamber provides for an opitimal temperature uniformity.

Standard Equipment

• Tmax 1650 °C
• High-quality heating elements made of molybdenum disilicide offer very good protection against chemical interaction between charge and heating elements
• Exclusive use of insulation materials without categorization according to EC Regulation No. 1272/2008 (CLP)
• Very good temperature uniformity thanks to three (LHT 02/17 LB Speed) or four-sided (LHT 01/17 LB Speed) heating of the furnace chamber
• Furnace chamber with a volume of 1 or 2 liters, table with large floor space
• Precise, motorized toothed belt drive of the table with button operation
• Opening time of table approx. 30 sec., completely open
• Exhaust air vent in the roof
• Type S thermocouple
• Controller with touch operation P580 (50 programs with each 40 segments)
• Defined application within the constraints of the operating instructions
• NTLog Basic for Nabertherm controller: recording of process data with USB-flash drive
